Skimz Aquarium Pump

Skimz Leopard L60 Water Pump

The new Skimz Leopard submersible pumps are quiet pump built with the harsh saltwater environment in mind. The Skimz Leopard pump is based on an Italian Askoll motor block to be durable, energy efficient and quiet.

This pump line features five models ranging from the Skimz L60 Leopard that moves 6000 l/hr (about 1500 GPH) at 65W to the Skimz L160 Leopard that pushed 16,000 l/hr (about 4225 GPH) at 155W. Each pump features saltwater resistant titanium screws and parabolic rubber vibration reducing rubber feet. The AC pumps are plumbed in using schedule 80 PVC connections or DIN hose fittings on the inlet and outlet.

skimz leopard aquarium pump

Despite sharing the same name as the Skimz Leopard line of DC protein skimmers, the Skimz Leopard pumps are AC making them a good option for return pumps where you want a consistent flow from a powerful pump.

As far as we know, the pumps are a new addition and should be available shortly. Although we don’t have any pricing on these, Skimz usually falls in line with other similar mid-priced pumps.

Skimz Aquarium Pump

Skimz Leopard L75, L90 and L110 Water Pump

Skimz Aquarium Pump

Skimz Leopard L160 Water Pump

For more information: Skimz debuts quiet, submersible Skimz Leopard pumps



Share on digg

Skimz QuietEco Aquarium Pump

Skimz QuietEco sono le nuove pompe di risalita presentate da Skimz nelle scorse settimane.

Le pompe sono 6 e partono da un minimo di 600 l/h di portata fino ad un massimo di 4.000 l/h. Pompe quindi perfette per la maggior parte degli acquari, da quelli più piccoli a quelli più grandi.

Skimz ha utilizzato il nome QuietEco per identificare delle pompe che dovrebbero essere particolarmente silenziose e risparmiose. Ma ovviamente senza poterle testare adeguatamente non possiamo per ora dirlo. Anche se possiamo vedere i dati tecnici e confrontarli con le pompe che ci sono passati fra le mani in passato.

In ogni caso parliamo di pompe sommergibili con portata regolabile in maniera meccanica tramite parzializzatore. Bella ed inusuale la livrea arancione.

La Gamma Skimz QuietEco

 QE0.6  QE0.8  QE1.2   QE2.0   QE3.0  QE4.0
Portata  600 l/h  800 l/h  1.200 l/h  2.000 l/h  3.000 l/h  4.000 l/h
Prevalenza  1,2 metri  1,8 metri   2 metri  2,5 metri  3 metri  3,5 metri
Consumo  12 watt  18 watt   22 watt  45 watt  55 watt  75 watt
Larghezza  6,7 cm  7,2 cm  9,3 cm  9,7 cm  13,4 cm  15 cm
Profondità  4,9 cm  5,5 cm  6,4 cm  7,5 cm  8,7 cm  9 cm
Altezza  7,4 cm 7,7 cm  10,3 cm  12 cm  13,6 cm  14,5 cm
Efficienza  50 l/h*w 44 l/h*w  55 l/h*w 44 l/h*w  54 l/h*w  53 l/h*w
Valore di riferimento  36.000 l*cm/h  72.000 l*cm/h  120.000 l*cm/h  250.000 l*cm/h  450.000 l*cm/h  700.000 l*cm/h
 Diametro di uscita  12/16 mm  12/16 mm  12/16 16/21 19/27 mm  12/16 16/21 19/27 mm  12/16 16/21 19/27 mm  12/16 16/21 19/27 mm

L’alberino di tutte le pompe è costruito in ceramica.

Da una veloce analisi dei dati tecnici possiamo vedere che l’efficienza non sia fra le più alte. Mentre le coppie di portata e prevalenza sembrano piuttosto ben assortite.

I prezzi di contro sembrano essere molto interessanti in quanto si parla di un range compreso fra 10 e 45 dollari circa. A cui ovviamente deve essere poi aggiunta l’IVA.

Skimz QuietEco Aquarium Pump Skimz QuietEco Aquarium PumpSkimz QuietEco Aquarium Pump

Sopra vedete quattro delle pompe a confronto. Si apprezzano ovviamente le differenze fra queste quattro classi di pompe. Peccato che le fotografie non siano in scala.

Chissà che non riusciremo a provarne una per vedere se siano allo stesso livello delle pompe che già sono importate nel nostro paese.

Skimz QuietEco sono le nuove pompe di risalita Skimz fino a 4.000 l/h

Share on digg

Skimz QuietEco Aquarium Pump

QuietEco QE3.0 Pump

The Skimz QuietEco pumps are a new line of submersible circulation pumps by the Singapore-based company. Designed to be affordable and energy efficient, the pump range has options for flow rates from 600 to 4,000 liters per hour.

All six ceramic shaft pumps feature adjustable flow control, adapters to connect flexible hoses on barbed fittings and come with a one-year warranty.

Skimz QuietEco aquarium pump has six different models: QE0.6, QE0.8, QE1.2, QE2.0, QE3.0, QE4.0 and range in price from around $10 USD to $45 USD. The smallest pump, the Skimz QE 0.6, consumes 12 watts of power and the largest, the Skimz QE 4.0 uses 75W.

Skimz QuietEco Aquarium Pump

QuietEco QE0.6 and QE0.8 Pump

Skimz QuietEco Aquarium Pump

QuietEco QE1.2 and QE2.0 Pump

Skimz QuietEco Aquarium Pump

QuietEco QE2.0 Pump

For more infomation: Reefbuilders – New Skimz QuietEco pumps come in six sizes



Share on digg

reattore di macroalghe Skimz

Oggi noi di DaniReef vi presentiamo il reattore di macroalghe Skimz, filtro ATS concepito per il funzionamento in sump.

Quest’estate durante l’Interzoo nello stand Skimz abbiamo avuto modo di vedere il prototipo di questo filtro e ve ne avevamo parlato nell’editoriale sull’Interzoo (leggi qui), ora è pronto il prodotto definitivo: il Filtro a Macroalghe a bioassorbimento Skimz.

FILTRI ATS

Gli ATS, Algae Turf Scrubber, sono filtri che utilizzano l’attività biologica delle alghe per l’eliminazione di fosfati e nitrati, generalmente è costituito in un tubo di plastica provvisto di una luce, ma Skimz è il primo ad offrire un reattore filtro di macroalghe  con pompa integrata.

Per il loro filtro ad alghe hanno abbinato il filtro ad una pompa DC controllabile, in modo da poter facilmente gestire la portata desiderata o necessaria per  ottimizzare sia la crescita delle alghe, sia il tasso desiderato di assorbimento dei nutrienti attraverso l’intero filtro.

reattore di macroalghe Skimz

FILTRI MBR1X7

Skimz produce  il reattore di macroalghe  in due versioni:

  • il MBR127 per vasche fino a 400 litri (100 galloni);
  • il MBR157 per serbatoi fino a 1.000 litri (264 galloni).

reattore di macroalghe Skimz

skimz macroalgae reactor

Il Reattore a Macroalghe a bioassorbimento Skimz MBR127 equipaggiato con la pompa DC QUIETPRO 1.2 ha un ingombro ridotto adatto per acquari fino a 400 litri.

Caratteristiche Tecniche:

  • Dimensioni: 175 x 176 x 410 millimetri
  • Pompa: QP1.2 DC – 12W
  • LED: 14W
  • Watt totale: 26W
  • Per Acquario: fino a 400L

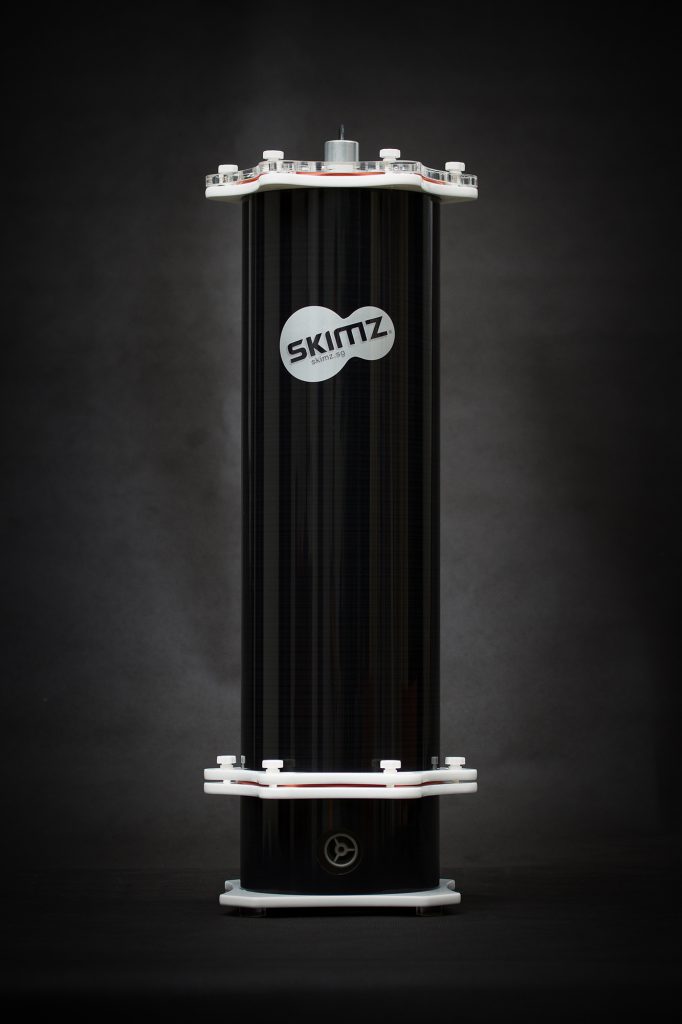

Macroalgae Reactor

Il Reattore a Macroalghe a bioassorbimento Skimz MBR157 equipaggiato con la pompa DC QUIETPRO 2.0è adatto per acquari fino a 1.000 litri.

Caratteristiche Tecniche:

  • Dimensioni: 185 x 210 x 570 millimetri
  • Pompa: QP.2.0 DC – 22W
  • LED: 21W
  • Watt totale: 43W
  • Per Acquario: fino a 1,000L

skimz macroalgae reactor

Il tubo led è dotato di vetro di quarzo per massimizzare la penetrazione della luce e l’efficienza. Il vetro di quarzo è costituito da cristalli di quarzo che si traducono in un vetro trasparente di elevata purezza. I led presentano 3 gradazioni di rosso ed una di blu.

Sul sito Skimz è già dato disponibile per la prenotazione ma non ne viene indicato il prezzo, che dovrebbe aggirarsi intorno ai 300€ per il MBR127 e 370€ per il MBR157.

Sito del produttore: Skimz

Il reattore di macroalghe marcato Skimz: MBR127 e MBR157

Share on digg

aquarium activated carbon filter media

Activated Carbon

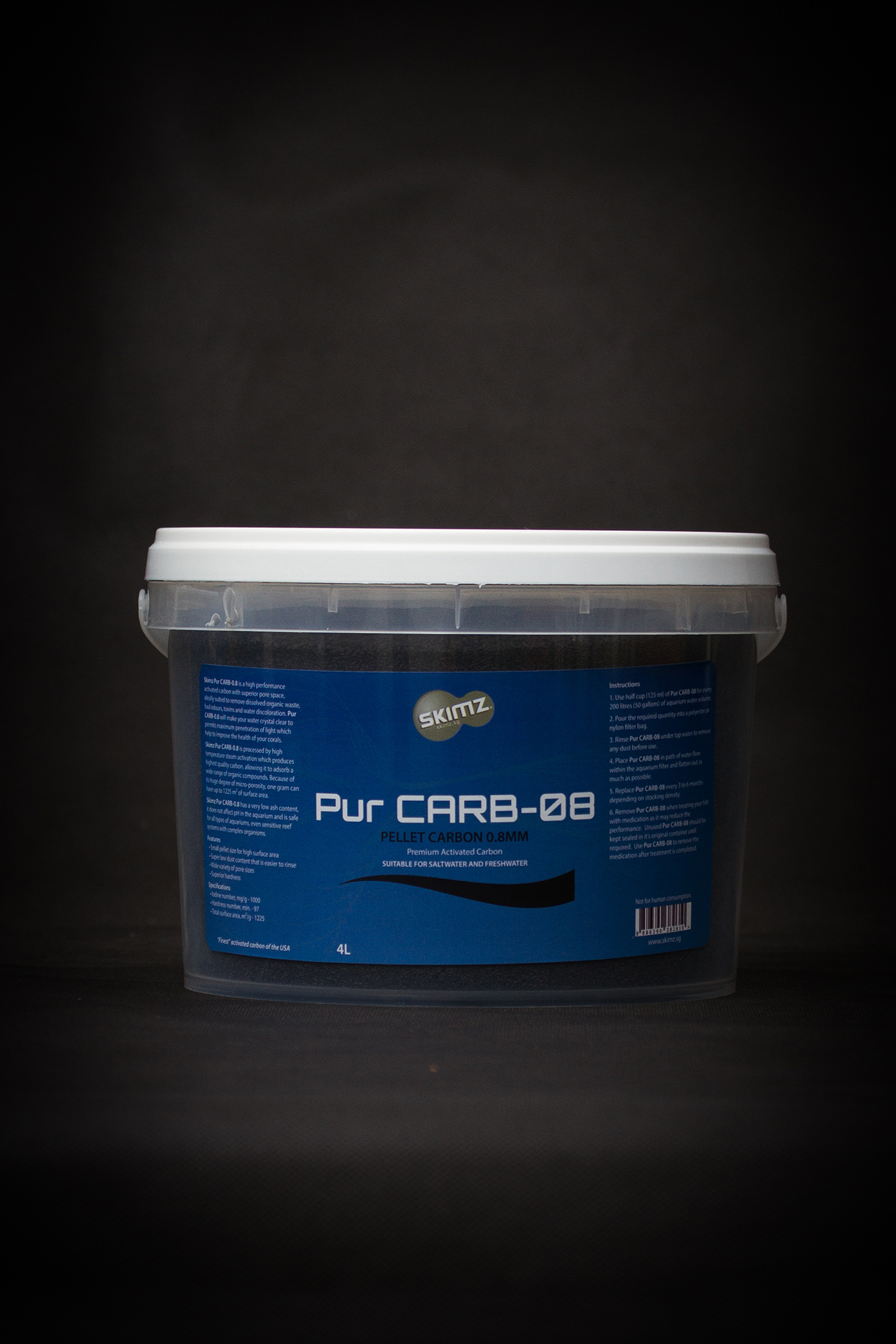

Skimz added another product to its line with the new Skimz Pur CARB-08 activated carbon. So what makes the Skimz carbon unique in a sea of other carbon options? It looks like Skimz looked for a clean, efficient option to ensure your activated carbon does as much as it can for you.

Pur CARB-08 gets its name for the 0.8mm pellet size. These pellets are made from carbon that is activated at a high temperature with steam for a high quality and porous product. In fact, the highly-porous surface is guaranteed to have 1,225 square meters of surface area per gram of carbon (average for activated carbon in general is 1,000 sq. meters).

Skimz also notes the product is low in ash and high up there on the hardness scale so it should be able to withstand some tumbling without breaking up.

Skims Pur CARB-08 comes in three sizes a 680ml, a 1,500ml and a 4,000ml container that retail for around 9.00 SGD, 18.00 SDG and 42.00 SDG (around $7, $13 and $30 USD) respectively.

aquarium activated carbon filter media aquarium activated carbon filter media aquarium activated carbon filter media

Share on digg

Macroalgae Reactor

We’ve got a fresh new look at the Skimz macroalgae reactor, and boy has it come a long way from the prototype we spotted in Germany this summer. Gone is the fan-cooled mess that typified the original model, replaced now in favor of a much sleeker and passively cooled LED light tube.

Macroalgae Reactor

The newly refined Skimz Macroalgae reactor looks so much better now, and it retains the built-in controllable DC pump, using their in-house QuietPro DC pump. The inclusion of a water pump makes the Skimz Macroalgae reactor a complete solution to leveraging the benefits of a concentrated algae scrubber, allowing users to simply place the unit in a part of their sump.

Skimz is making their macroalgae reactor in two sizes, the MBR127 for tanks up to 400 liters (100 gallons), and the MBR157 for tanks up to 1000 liters, (264 gallons). The MBR127 reactor has a 14 watt LED tube with a QuietPro 1.2 DC pump, and a footprint of less than 7 inches square, and 16 inches tall. Meanwhile the MBR157 uses a 20 watt LED tube, QuietPro 2.0 and a footprint of 7.25 by 8.25 inches, and 22.5 inches tall. Skimz is expecting a suggested retail price of $310 for the MBR127 and $390 for the larger MBR157.

The Skimz reactor follows the path trail blazed by the heavy-duty Pax-Bellum A.R.I.D. reactor, but brings the concept within reach to even more aquarists with an all in one, and much cheaper model. Large saltwater and reef tanks, or those requiring an externally plumbed solution will still want to look at the Pax-Bellum but for more conventional reef tank sizes, the new Skimz Macroalgae Reactor is looking like a particularly enticing choice.

Macroalgae Reactor Macroalgae Reactor Macroalgae Reactor Macroalgae Reactor Macroalgae Reactor Macroalgae Reactor

For more info: Skimz Macroalgae Reactor Looks Ready For Primetime



Share on digg

Meet the new Skimz QuietPro DC pump

Posted: 13th October 2016 by admin in Pump
Tags: , , ,

Reefbuilders –

skimz QuietPro DC aquarium pump

The QuietPro DC pump is the latest pump from the Singapore manufacturer. Touting all the benefits of a DC pump, the Skimz QuietPro line can be ran wet or dry while delivering energy savings of up to 50%, all for an approachable price tag.

Designed with the saltwater aquarium in mind, the QuietPro is a variable speed controllable pump with a high flow rate that uses brushless DC (BLDC) 6-pole synchronous motors for a nearly noise-free operation. This allows for torque at a more constant thrust per revolution of the rotor. It also features a ceramic shaft to extend the life of the pump and motor.

skimz QuietPro DC aquarium pump

The QuietPro allows you to adjust the speed to fit your needs. It also has a slow start-up mode and automatic power-off protection mode. The slow startup mode builds speed up gradually when power is applied, getting up to the desired speed in about 20 seconds. As a safety check, if the pump detects no water or if the inlet gets blocked with debris, the pump automatically enables is power-off protection mode.

Here is a rundown of the QuietPro functions:

  • Variable speed – range from 5 – 100%
  • Soft startup – prevent excess wear on motor and impeller assembly
  • Shut-off blocks – automatic restart after 10 seconds (power off after 10 times)
  • Dry run – automatic restart after 2 minutes (power off after 10 times)
  • Memory module – in case of power failure, re-identification of the last set speed
  • Feed mode – disable pump for 10 minutes.
  • LED display – Wattage and speed settings

There are currently five models that push out 1,200 to 9,000 liters per hour. The smallest pump Skimz QP1.2 retails around $5o USD and the largest pump QP9.0 retails for around $100.

For more info: Reefbuilders – Meet the new Skimz QuietPro DC pump



Share on digg

Reefbuilders –

Macroalgae reactor

The Skimz macroalgae filter reactor is an interesting take on a product category which is beginning to gain a lot of traction in the aquarium hobby. The singaporean aquarium product company is quite prolific when it comes to experimenting with different protein skimmer types, and especially with body geometries, so their new macroalgae filter is a logical progression of their creativity.

Skimz is the first to offer a macroalgae filter / chaetomorpha reactor with a built-in pump. For their algae filter they’ve paired it up with a controllable DC pump so you can easily dial in the desired or necessary flowrate to optimize both algae growth, and the desired rate of nutrient uptake through the entire reaction chamber.

Macroalgae reactor

The in-sump reactor requires no plumbing as the DC pump draws directly from the sump with a basic outlet directing water flow out in the base of the body as well. The light included in the skimz macroalgae scrubber is also an interesting design, with small multichips of alternating pure red and pure blue LEDs.

The top-mouted fan for cooling the LEDs seems like it could be a liability for long term use, especially inside the sump. But since this new product from Skimz is an early version prototype, there is definitely room for improving both the choice of lighting down the center of the reactor, and the method of cooling those lights inside an enclosed tube.

Macroalgae reactor

Macroalgae reactor

Macroalgae reactor

Macroalgae reactor

For more info: Reefbuilders – Skimz unveils a macroalgae filter chaetomorpha reactor of their own



Share on digg

The new Skimz Piramid protein skimmer is slim and powerful. With space saving design, it is great for people who have small sumps, but in need of a powerful protein skimmer. The design of the new Skimz Piramid skimmer has slimmed down the width by up to 36%.

Monzter Series (width)     Vs      Piramid Series (width)                   Percentage

SN123 – 163mm                                      SP153 – 110mm                                       32%

SN143 – 188mm                                     SP783 – 120mm                                       36%

SM163 – 188mm                                    SP203 – 150mm                                       20%

SM203 – 234mm                                   SP253 – 180mm                                       23%

SM253 – 290mm                                   SP283 – 200mm                                      31%

The new R14 TinyAir™ bubble plate designs with the ratio 1:4 coarse-to-fine holes which further reduces the bubble sizes to get a finer sized bubble.

Bubble size is important as the smaller the bubble, the greater will be the surface area for attraction of the organic waste. One bubble that is 1mm diameter has a surface area of 3.14 mm2, whereas half the bubble size with a diameter of 0.5mm for the same volume of air is now 6.28 mm2, or double the surface area. Smaller bubbles have an added advantage, they rise slowly in the reactor chamber giving them more time to react.

Technical features:

  • Pyramid shape
  • R14 TinyAir™ bubble plate
  • Footprint reduced by up to 31%
  • Semi-pipeless design
  • Micro-Adjustable valve
  • DC pinwheel pump with six preset RPMs and food shutoff timer

Skimz Piramid protein skimmer has five different models: SP163, SP183, SP203, SP253 and SP283.

               Model               Pump                Air Intake         Watts                 For Aquarium

SP163                   VSC 1.2                360                       12                          500

SP183                   VSC 2                    660                       18                         900

SP203                   VSC 4                    1,200                    22                        1,200

SP253                   VSC 6                    1,800                    47                        2,000

SP283                   VSC 9                    2,100                    53                        3,000

Please come visit Skimz at Interzoo 2016 – Hall 5 Stand 303D in Nuremberg Germany between the 26th and 29th of May 2016 to see Skimz new products, PIRAMID skimmers and SUMPRO sumps.

Design Patent No. 30201602341R



www.skimz.sg

Skimz Piramid Protein Skimmer

Skimz SP203 Protein Skimmer Side View

Skimz Piramid Protein Skimmer

Skimz SP203 Protein Skimmer Front View

Skimz Piramid Protein Skimmer

Skimz SP253 Protein Skimmer Side View

Skimz Piramid Protein Skimmer

Skimz SP253 Protein Skimmer Front View

Skimz Piramid Protein Skimmer

Skimz SP283 Protein Skimmer Side View

Skimz Piramid Protein Skimmer

Skimz SP283 Protein Skimmer Front View





Share on digg

February 29 2016, – Reefbuilders

The new Skimz Sumpro series of sumps are another in the growing trend of quality sumps that’s beauty can rival the tank above. With equipment like this, you can turn the bottom of your aquarium into a point of pride.

The new sumps from Skimz feature the white, stylish and efficient design with just a little pop of orange consistent with the company’s other products.

Like many sumps, the first stage of the Skimz Sumpro two-stage Duoflo filter sock chamber, skimmer chamber, built-in dosing lines and probe holders and for some models a top-off water chamber and refugium.

Skimz took a novel path with the filter chamber. The aquarium water drains into the filter chamber with the outlets submerged with the water then overflowing into the sock chamber to prevent salt creep and reduce noise. The two-stage filter sock chamber allows you chose what filtration size you want. Once the first chamber becomes blocked, the water spills over to the second chamber.

The next stage is a skimmer chamber with what they call their Level-o-matic adjustable spillway gate to control the water level for optimal protein skimmer operation. Rather than just adjusting baffles with thumbscrews, Skimz Level-o-matic adds this level of control (on top of the sump no less) to adjust the spillway gate allowing you to adjust water height from 180 to 230mm.

The Skimz Sumpro also features customizable holes to handle the pipe size you want to use, from DIN Standard (DN25, DN32, DN40) to Schedule 80 in 1 in. and 1.5 in. sizes. There is also the option to use a pipework hole cover with a notch for a heater.

All Skimz Sumpro series sumps come with a probe holder that can hold up to four probes. The holes are 15mm In diameter with thumbscrews to secure different sized probes. The sumps also come with tube holder In the top support brace for holding In four 6mm tubes from dosing pumps, auto top offs, reactors, etc.

There are eight different sizes (see sizing chart in images) that range in size from the Skimz Sumpro UP14 that measures in at 14 x 18 x 15 in. (15 gallon capacity) to the UP39 that measures in at 39x15x15 (35 gallon capacity). Three sizes — the UP34, UP36 and UP39 — feature the refugium section and five sizes – the UP21, UP30, UP34, UP36 and UP39 – feature the ATO resovoir.

We are hoping to have pricing and available details shortly.

www.skimz.sg

Skimz Sumpro Sump Tank Skimz Sumpro Sump Tank Skimz Sumpro Sump Tank Skimz Sumpro Sump Tank
